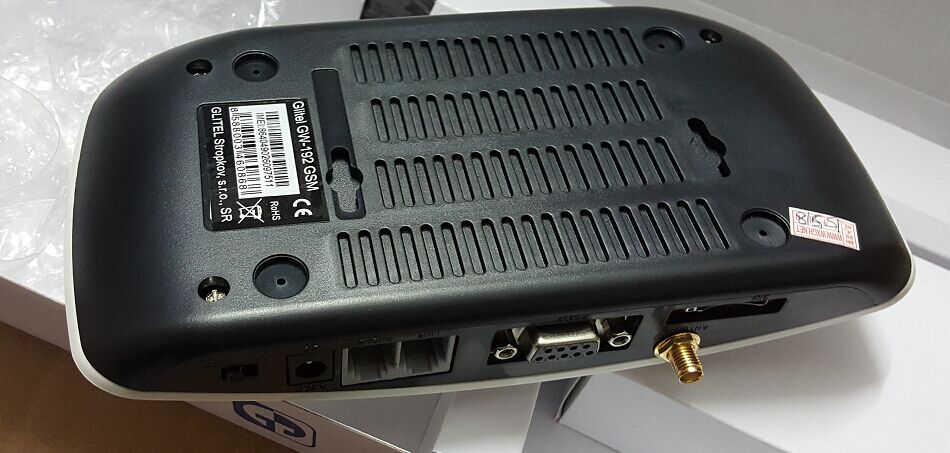

GW-192 FWT

The GW-192/GW-195 is a OEM module for slovakia user.

(1)introduction
The TeleStar Fixed Wireless Terminal is a high and new technique design of a the style GSM equipments, it adequately developped the GSM network the conjunctioned quickly fast,the quantity of communication is high, the speech is clear, the lead-in travel extensively to wait the characteristics.
The TeleStar Fixed Wireless Terminal to connect into the anti that the terminal stir the number to respond to quick, can provide the precision pole pay fee signal, power supply of breadth electric voltage orientation scope, support power supply, vivid IP road of various back ups from establish etc., this equipments adoption low power depletion of small physical volume of clear speech of new technique design, Be applicable to the business enterprise to connect into, every kind of situation application in region, steamer, train...etc.

  Welcome OEM,ODM.

(2)Features:

  u        provide special voice tone for slovakia country.

u        Support LCR(Least Cost Routing) capabilities between the PSTN and GSM network. Auto switch the router and dialing the number.（option)

u        The auto switch to PSTN when Power off or GSM problems for Connect to Alarm systems to realize wireless alarm(for security use)

u        The online sound of dial, busy sound.

u        Caller ID. with FSK/DTMF Can been showed to telephone.

u       Provides reversal polarity or 12k/16khz signal for metering (option).

u        Compatible to most telephones, PBX and VoIP gateways (for call Termination)

u        Steady NEW ZTE industrial module and reliable design ensures good performance.

u        Local code set, solid long-distance, cellphone’s IP(prefix number),eg:17951,17911,193,different area the products   automatic insert different Ip.

u        Dial free number directly,eg:110,119,120;You can set pay counter freely, Ip, free number.

u        Provide Strong signals .Can use for weaker signal place

u        Automatic reply it's working status to your mobile when you send a SMS to it.

u       Suitable for wide voltage range and low power consumption

u       GPRS function(optional)

u      Support IMEI change(optional)

u      Back up li-ion battery(optional)

 (3)application
● Wireless business
● The business enterprise lead-in connect into the business

● Alarm systems to realize wireless alarm(for security use)
● In mountain area where is hard to spread the line region to fix the telephone business
● The steamer, train etc. moves to carry the communication business

(4)Specifications
● Air interface standard: GSM 900/1800/850/1900 MHz Phase 2+

● Sensitivity: -104dB
● Peak power consumption: 2W
● Operating environment requirements:
○ Temperature: 0°C - +40°C
○ Relative humidity: 45% - 90%
● Connectors: SMA antenna connector (TNC optional)
● Atmospheric pressure: 86~106Pka
● Power consumption: static≤25 mA, emission≤500 mA
● Antenna: Gain: 3.5dB (all directional) 12 dB(Certain/selection)
● Power supply:
○ AC220V±10% 47-54Hz AC110V/60Hz(optional)
○ DC12V (optional)
Back up power supply: LION, storage battery

o Talking time: 3 hours
o Standby time: 18 hours

Packing:

            N.W:0.54KG G.W: 12KG
