THIS CDMA FWT WITH 8 CHANNELS IS
PERFECT QUALITY. MANUALFATURE IT
WITH ZTE module.you can use it in all cdma 2000
1x system. you can change ESN,IMEI,and etc
parameters.
It can
provide accuracy polarity inverse signal for
VOIP,PBX,CALLBACK SYSTEM billing system.

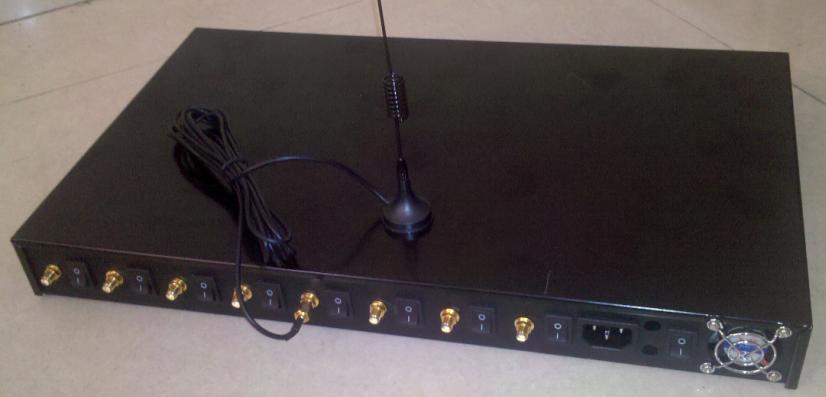

The design of the TLD SX01C-8WAYS(OEM MODULE: YS-X-CALL, YS-X-TERMINAL) FWT is to supply a standard sound phone in the area of the CDMA Cell Network covering.
The interface board of the TLD SX01C-8WAYS FWT supply a clear bond between standard phone or a VOIP GATEWAY or A PBX and CDMA Cell Network it possesses the function of the emulation phone exchanger and supply:
Features:
¡ó Dialing tone with 450hz
¡ó DTMF Dialing
¡ó Bell signal
¡ó Polarity reversal
¡ó The RJ-11 socket which connect the phone or the payment
¡ó Antenna socket (FME)
¡ó IP usage switch
¡ó Working state indicator
¡ó Signal Strength indicator
Technical Specifications
CDMA Module Dual band CDMA 2000 1X 800/1900MHZ
Phone interface£ºsupply RJ-11 Phone Interface
Hanging voltage:45V Picking off voltage£º30mA/41mA
Dialing tone Frequency£º450Hz
Antenna interface £ºAntenna amplifying ¡µ1.5DB
Sensitivity ¡´ -104DBM
Transmitting power¡Ü3W
Adapter interface£ºINPUT£ºAC 175~260V
OUTPUT£º+12V/1000MA
Operation Circumstance:
Operation temperature£º-10¡æ ~ 60¡æ
Storage temperature£º-20¡æ ~ 70¡æ
Operation humidity£º45% ¡ª95%
Atmosphere pressure£º86 ¡ª106Kpa
Environment noise£º¡´ 60DB
Transmitting Power: 2W
Sensitivity: <-104dbm
Antenna Amplifying: >1.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking carrent: 30mA/41mA
Packing:
¡ð Product dimension: L455x W280 x H45mm
¡ð Gift box dimension: L510x W170x H64mm
¡ð G.W: 4.5kg
Please contact us in msn wdg838@hotmail.com to get the manual and cooperate each other
