SX01G7-fxo

(1)introduction

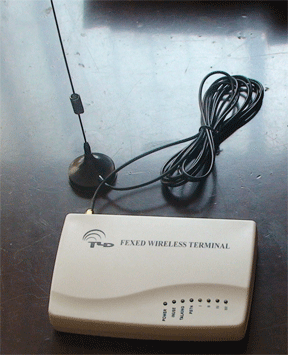

The TeleStar Fixed Wireless Terminal is a high and new technique design of a the style GSM equipments, it adequately developped the GSM network the conjunctioned quickly fast,the quantity of communication is high, the speech is clear, the lead-in travel extensively to wait the characteristics.
The TeleStar Fixed Wireless Terminal to connect into the anti that the terminal stir the number to respond to quick, can provide the precision pole pay fee signal, power supply of breadth electric voltage orientation scope, support power supply, vivid IP road of various back ups from establish etc., this equipments adoption low power depletion of small physical volume of clear speech of new technique design, Be applicable to the business enterprise to connect into, every kind of situation application in region, steamer, train...etc.

(2)Features:

 u        The auto switch to PSTN when call GSM ,then you can dialing number out from PSTN.

u        The auto switch to GSM when call pstn number  ,then you can dialing number out from GSM. .

u        You config white name list. Just the number in white name list can call in.

u        You can config black name list. This numbers which in black name list cannot call in.

 (3)application
● Wireless business
● it can connect to a FXS of a voip ATA. You can make a call to the device by your mobile .The device can auto connect to VOIP,Then you can dianling number out from the voip. the rate will be very cheaper.
● you can place the device In zone nearby a another country where have another country GSM signal. some one in another country can use his mobile or a phone call the device,the device auto connect to difference country pstn. the caller can make a nation call with locate rate

(4)Specifications
● Air interface standard: GSM 900/1800 MHz Phase 2+
● Frequency ranges:
○ GSM900:
● Transmit: 890~915MHz;
● Receive: 935~960MHz
○ GSM1800:
● Transmit: 1710~1785MHz;
● Receive: 1805~1880MHz
● Channel space: 200KHz
● Sensitivity: -104dB
● Peak power consumption: 2W
● Operating environment requirements:
○ Temperature: 0°C - +40°C
○ Relative humidity: 45% - 90%
● Connectors: SMA antenna connector (TNC optional)
● Atmospheric pressure: 86~106Pka
● Power consumption: static≤25 mA, emission≤500 mA
● Antenna: Gain: 3.5dB (all directional) 12 dB(Certain/selection)
● Power supply:
○ AC220V±10% 47-54Hz AC110V/60Hz(optional)
○ DC12V (optional)
● Air interface standard: GSM 900/1800 MHz Phase 2+
● Frequency ranges:
○ GSM900:
● Transmit: 890~915MHz;
● Receive: 935~960MHz
○ GSM1800:
● Transmit: 1710~1785MHz;
● Receive: 1805~1880MHz
● Channel space: 200KHz
● Sensitivity: -104dB
● Peak power consumption: 2W
● Operating environment requirements:
○ Temperature: 0°C - +40°C
○ Relative humidity: 45% - 90%
● Connectors: SMA antenna connector (TNC optional)
● Atmospheric pressure: 86~106Pka
● Power consumption: static≤25 mA, emission≤500 mA
● Antenna: Gain: 3.5dB (all directional) 12 dB(Certain/selection)
Antenna conjunction:SMA antenna deal with contacts
● Power supply:
○ AC220V±10% 47-54Hz AC110V/60Hz(optional)
○ DC12V (optional)
Back up power supply: NIMH, LION, storage battery, dry????? battery(opitions)

o Talking time: 3 hours
o Standby time: 18 hours

Packing:
　

            N.W:0.54KG G.W: 12KG

Please contact us in MSN wdg838@hotmail if you want the manual.
