TLD SX01G2-NKA |

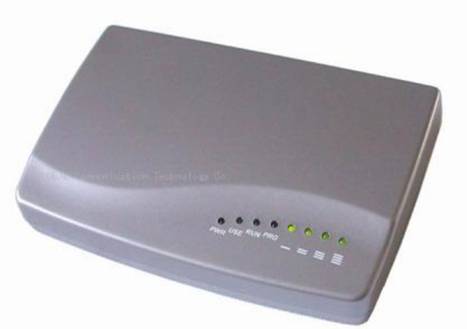

GSM Fixed Wireless Terminal
Product: GSM Fixed Wireless Terminal |
Model Number: TLD SX01G2-NKA |
Place of Origin: China |
Brand Name: TELESTAR |
Quality/Safety Certifications: CCC |
Price Terms: FOB ShenZhen |
Minimum Order: 500 units |
Payment Terms: T/T in advance |
Delivery Lead Time: 20 days |
Supply Ability: 60,000 units/month |
Features:
- Providing 900 and 1800 GSM connectivity
- Simple to install/easy to maintain
- Allow PIN code entering and reciprocal phone-card lock
- Provide optimized circuit directly connecting the exchange device for extensions
- LCD with backlit screen
- Polarity reversal signal for metering
- 3.5dBi gain antenna
- Compatible to PABX
- Suitable for call termination of ISP
- Incoming call reminder, time display
Specifications:
- Air interface standard: GSM 900/1800 MHz Phase 2+
- Frequency ranges:
- GSM900:
- Transmit: 890~915MHz;
- Receive: 935~960MHz
- GSM1800:
- Transmit: 1710~1785MHz;
- Receive: 1805~1880MHz
- Channel space: 200KHz
- Sensitivity: -104dB
- Peak power consumption: 2W
- Operating environment requirements:
- Temperature: 0＜C - +40＜C
- Relative humidity: 45% - 90%
- Connectors: SMA antenna connector (TNC optional)
- Atmospheric pressure: 86~106Pka
- Power consumption: static＋ 25 mA, emission＋ 500 mA
- Antenna: Gain: 3.5dB (all directional) 12 dB(Certain/selection)
- Power supply:
- AC220V＼10% 47-54Hz AC110V/60Hz( optional)
- DC12V ( optional)
Packing:
- Product dimension: L 192x W138 x H40 mm
- Gift box dimension: L 265x W170x H64mm
- Carton dimension: L 355x W273 x H360 mm 10pcs/carton
N.W:0.35KG G.W: 7.5KG
